Flex-Turn®

The hygienic way to convey around corners while maintaining product orientation and spacing

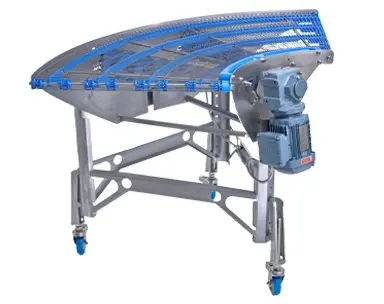

Field-proven and dependable Flex-Turn® power turning units gently convey products in process around corners while maintaining proper product alignment. They offer the tightest level transfer and smallest inside turning radius available. Smooth product handling minimizes potential damage to delicate products. The compact design solves tight production line space problems.

Request A Quote Call Me Now

Flex-Turn® Conveyor Advantages:

  • Gentle handling minimizes product damage
  • Tight transfers with adjacent conveyors and processing equipment
  • Maintains product orientation and spacing around turns
  • Unique non-collapsing tapered-pitch belt
  • Easy to use, clean, and maintain
  • Stainless steel and UHMW-PE construction
  • Height adjustable sandard 34'' - 42''
  • Swivel lockable castors are available
  • Typical belt speeds up to 36 feet per minute (at inside edge)


The Flex-Turn® range offers choices of size, belt width and configuration, providing a turn conveyor to suit almost every situation. Turns through 90° or 180° are standard, though other angles from 45° to 180° are available.

Our Flex-Turn® conveyors are available with three different belt supports:

  • The Series 600 Flex-Turn® conveyor is an open, stainless steel framed turn conveyor with polyethylene belt supports. This open structure allows for the easy removal of debris, and facilitates washing and draining.
  • The Series 700 Flex-Turn® conveyor has a solid polyethylene top. This prevents the product from falling through, or becoming entangled with the strands of the belt.
  • The Series 800 Flex-Turn® conveyor has a solid stainless steel top, with stainless steel running rails. This option is particularly suited in some meat processing situations.

With a total of thirteen different sizes of belt, and a range of angles between 45° to 180°, there is a Flex-Turn® conveyor for almost every application. Our standard drive motors and controllers are supplied with IP66 enclosure protection and OS2 surface protection to ensure suitability for intensive wash down processes. If required, customer specified drive systems can be fitted to suit each individual application.

A variable-frequency drive (VFD) can be fitted alongside the drive motor to provide a stop/start function and speed control.  As standard, this is housed inside our Standard Conveyor Control Panel, featuring a fully stainless steel enclosure and emergency stop button.  Alternatively, an invertek E3 Optidrive controller can be supplied with plastic enlosure and no emergency stop function.

As standard, Flex-Turn® Conveyors are supplied with height adjustable footpads with fixing holes.  As an optional extra, Flex-Turn® Conveyors can be supplied with lockable, swivel castors with brakes.

Material

Conveyor frame contruction from stainless steel.
Support surface is high density food grade blue polyethylene.

Available Sizes

Three Inside Radii are available, each with a selection of belt widths:

Model 616, 716 & 816 Specifications
Belt Width Inside Radius Available Angles
10" 16" 45° to 180°
16" 16" 45° to 180°
24" 16" 45° to 180°
34" 16" 45° to 180°
42" 16" 45° to 90°
50" 16" 45° to 90°
  • Handles loads up to 2.5lbs/sq. ft. at belt speeds typically from 9 to 36 feet per minute at the inside radius.
  • Wire belt used is Flat-Flex® stainless steel tapered mesh approximate 3/8" pitch at inside radius and up to 3/4" at outside, wire diameter .072".
  • Transfer roller diameter is 1.5''
Model 632, 732 & 832 Specifications
Belt Width Inside Radius Available Angles
*16" 32" 45° to 180°
**24" 32" 45° to 180°
34" 32" 45° to 180°
* this belt actually measures 15"
** this belt actually measures 24.5"
  • Handles loads up to 2.5lbs/sq. ft. at belt speeds typically from 9 to 36 feet per minute at the inside radius.
  • Wire belt used is Flat-Flex® stainless steel tapered mesh approximate 3/8" pitch at inside radius and up to 3/4" at outside, wire diameter .082".
  • Transfer roller diameter is 1.5''
Model 680, 780 & 880 Specifications
Belt Width Inside Radius Available Angles
400 mm 800 mm 45° to 180°
600 mm 800 mm 45° to 180°
900 mm 800 mm 45° to 90°
1000 mm 800 mm 45° to 90°
  • Designed to handle smaller products.
  • Handles loads up to 1.8 lbs./sq. ft. at belt speeds typically from 9 to 36 feet per minute at the inside radius.
  • Wire belt used is Flat-Flex® stainless steel tapered mesh approximate 1/4" pitch at inside radius and up to 13/32" at outside, wire diameter .062".

Warranty and Spare Parts

All Wire Belt conveyors come with a 12 month warranty covering parts and workmanship.

We also offer an optional range of recommended spare parts package, details can be supplied upon request.

To discuss your requirements and application challenges, contact your local representative or our technical sales team at (603)644-2500 or email us at sales@wiebelt.com
